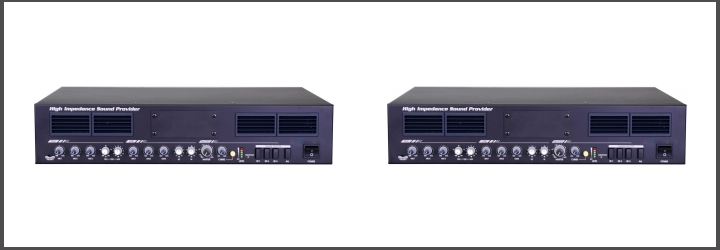

High Impedance Sound Provider
HIGH PERFORMANCE CIRCUIT
The Pre-amplifier includes the high performance circuit and performs better than 90dB of S/N ratio and less than 0.3% of T.H.D.
BALANCED CIRCUIT
The Mic1~2 input, Line1~2 input and Pre output circuits are designed with balanced circuit to prevent noise from outside.
PRIORITY SIGNAL SUPPORT FUNCTION
Automatically reduce or recover volume of other input signals when coming signal from an emergency.
All or announcement by Mic1,2 and chime.
Protection Circuits
Overload, Overheat, Soft-Start Automatic-Start Air Forced Cooling FAN.
ITEMS |
DESCRIPTIONS |
Rated Output Power |
120 Wrms |
Total Input Channel MIC/ LINE |
3 CH / 3 CH |
MIC Input Impedance |
1.5kΩ @1kHz, Balanced |
LINE Input Impedance |
15kΩ @1kHz. Balanced (LINE1, 2) / Unbalanced (LINE3) |
Maximum MIC/ LINE Input Sensitivity |
-50 / -20 dBu |
REC(Pre Fader)Output Level |
0dBu, Unbalanced |
Pre Output Level |
0dBu, Balanced |
MIC EQ |
500 Hz~10 kHz, Gv = ±15 dB |
LINE EQ |
LO(100Hz)/ HI(10KHz), Gv=+/-12dB |
Frequency Response |
30 Hz~20 kHz ±3 dB |
T.H.D(@30W/4Ω, 20Hz~20kHz) |
Less than 0.3% |
S/N ratio (MIC, Wtd) |
More than 90dB |
Power Requirements |
AC 220V ~, 50/60Hz |
Power Consumption |
100 W(1/8 Power), 250 Wmax |
Net Weight (kg/lb) |
10.5/ 23.1 |
Dimensions |
483(W) x 88(H) x 300(D) mm, 19(W) x 3.46(H) x 11.8(D) inch |
